London Bar

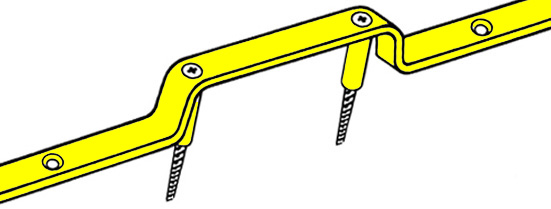

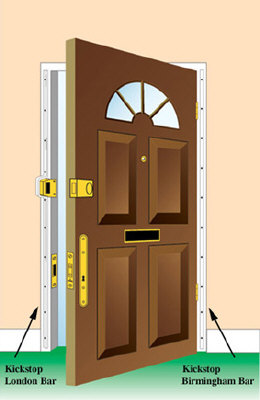

The Kickstop London Bar is a door frame reinforcing bar with a 'D' shaped staple to fit over and secure the staple (keep) of a surface fitted rim lock or cylinder nightlatch.  This very effective steel anti-burglary device is screwed on to the internal face of the lock side of the frame and will resist the kicking, splitting and forcing open of the door

At 5mm thick with a rounded edge and countersunk holes, it could blend in with the colour of the frame and is available in a choice of length, width and staple size



When fitting the Longer London Bars, a little of the top or the bottom of the bar will probably need to be removed when fitting - by cutting with a hacksaw







Before ordering

Very carefully check that the London Bar has the appropriate staple size that you need to fit over the staple/keep of the nightlatch or rim lock

The lock staple (also known as the keep) is the part that is fitted to the door frame.  The surface mounted lock latches into this - when the door is closed



  • Most of the bars are available in three lengths and two widths of steel
  •  Check the available width of flat door frame - before ordering
  • Decide on the width of bar required - 16mm or 20mm
  • Decide on the staple size required
  • Decide on the length of bar required
  • Decide on the colour/finish required



Universal Staple - up to 30 x 97mm. This is a large size staple that can be slightly reduced from 97mm - to fit over a smaller rim lock staple of 70mm or less

Standard Staple - 30 x 70mm. To fit over a Yale 77 and other similar sized nightlatch staples

Large Staple - 30 x 97mm. To fit over the Yale No. 1 and other similar sized rim locks staples

Extra Large Staple - 40 x 105mm. To fit over the ERA 1930, Yale PBS1, Banham L2000, Ingersoll SC100 and other similar sized rim lock staples

Ingersoll Staple - a 'handed' 30 x 70 modified standard staple London Bar. The modification allows its use with a left or right handed Ingersoll SC71 lock.

Ask us for details if you are not sure

!
!

London Bar - Universal Staple - 2009 WH







72" x 5/8" steel bar - with 9 countersunk screw holes

16mm wide

To Reinforce and Strengthen Wooden Door Frame

Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less

The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a London Bar with a Standard or Large size staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2009 dimensions - 1830mm long x 16mm wide x 5mm thick - white

(a wider bar is available - 20mm - product code 2010)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Universal Staple - 2011 WH







24" x 5/8" steel bar - with 4 countersunk screw holes

16mm wide

To Reinforce and Strengthen Wooden Door Frame

Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less

The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2011 dimensions - 610mm long x 16mm wide x 5mm thick - White

(a wider bar is available - 20mm - product code 2017)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Universal Staple - 2010



72" x 3/4" steel bar - with 9 countersunk screw holes

20mm wide

To Reinforce and Strengthen Wooden Door Frame

Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less

The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2010 dimensions - 1830mm long x 20mm wide x 5mm thick

(a narrower bar is available - 16mm - product code 2009)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Universal Staple - 2017 WH



24" x 3/4" steel bar - with 4 countersunk screw holes

20mm wide

To Reinforce and Strengthen Wooden Door Frame

Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less

The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2017 dimensions - 610mm long x 20mm wide x 5mm thick - White

(a narrower bar is available - 16mm - product code 2011)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Standard Staple - 2606 WH



72" x 5/8" steel bar - with 9 countersunk screw holes

16mm wide

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2606 dimensions - 1830mm long x 16mm wide x 5mm thick - White

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Standard Staple - 9606

78" x 5/8" steel bar - with 10 countersunk screw holes

16 mm wide

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9606 dimensions - 1980mm long x 16mm wide x 5mm thick

(a wider bar is available - 20mm - product code 9607)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Standard Staple - 9608

24" x 5/8" steel bar - with 4 countersunk screw holes

16mm wide

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9608 dimensions - 610mm long x 16mm wide x 5mm thick

(a wider bar is available - 20mm - product code 9616)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Standard Staple - 9607

78" x 3/4" steel bar - with 10 countersunk screw holes

20mm wide

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9607 dimensions - 1980mm long x 20mm wide x 5mm thick

(a narrower bar is available - 16mm - product code 9606)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Standard Staple - 9616

24" x 3/4" steel bar - with 4 countersunk screw holes

20mm wide

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9616 dimensions - 610mm long x 20mm wide x 5mm thick

(a narrower bar is available - 16mm - product code 9608)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

London Bar - Large Staple - 2609 WH



72" x 5/8" steel bar - with 9 countersunk screw holes

16mm wide

To Reinforce and Strengthen Wooden Door Frame

Large size 'D' shape staple to fit over a lock staple/keep which is 30mm x 97mm - or less

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2609 dimensions - 1830mm long x 16mm wide x 5mm thick - White

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
